LM567 PVC Vacuum Thermoforming Adhesive For Wood-Plastic Doors

Product Application(1) PVC Vacuum Thermoforming Adhesive(2) Primarily used for PVC vacuum forming on wood-plastic doors. Product Features(1) Low activation temperature(2) High strength(3) Fine adhesive texture(4) Excellent surface finish(5) Fast discharge speed

send inquiry

PREV:LM5188 PP、PET Vacuum thermoforming Adhesive
NEXT:LM505A PVC Vacuum Press Adhesive for Wooden Doors

Technical Parameters

Property Values Units

Appearance Milky white or slightly yellow liquid

Solid Content ≥48 %

PH Value 5-7

Viscosity 200-1000 mPa·s

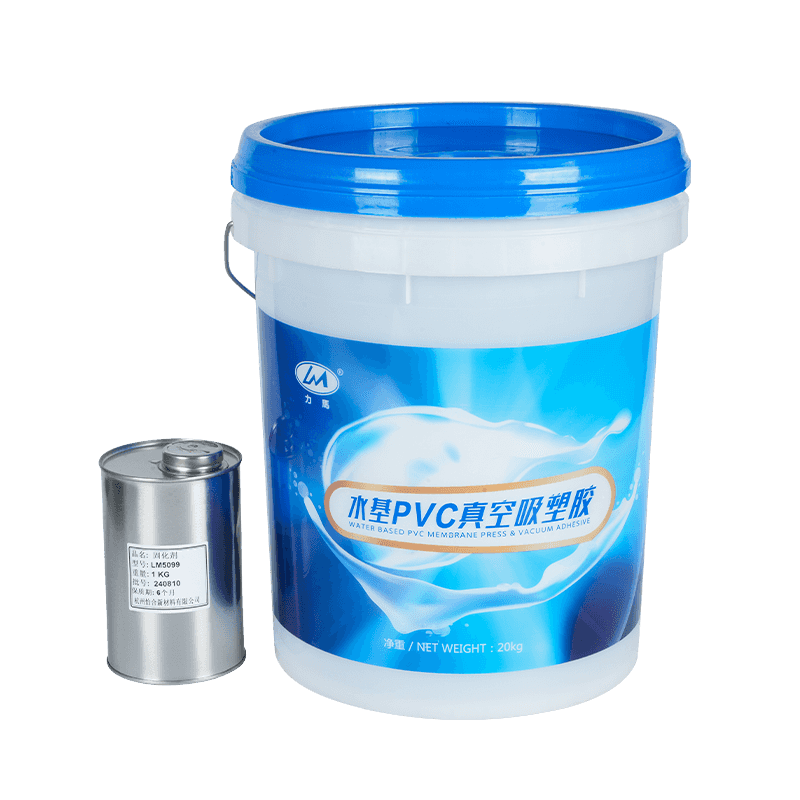

Product packaging:
20kg Plastic Drum, 25kg Plastic Drum

Precautions
1. Substrate Preparation: Ensure the boards are sanded and dust-free for a smooth adhesive application.

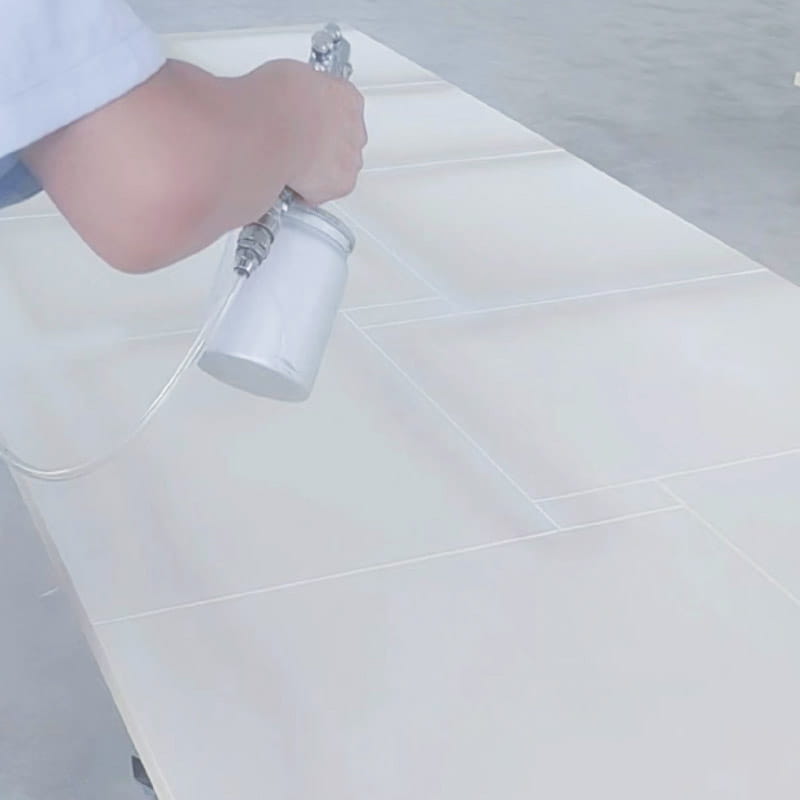

2. Adhesive Application:
- Use a spray gun with air pressure above 7 kg and a nozzle diameter of 1.3–1.5 mm.
- Apply approximately 80 g/m² of adhesive to grooves, glass-inlay sections, and side edges. For the entire door panel surface, apply an average of 40 g/m².
- For wide-base grooves, aim the spray nozzle at the joint between the beveled edge and the base, spraying each side once to ensure uniform coverage.

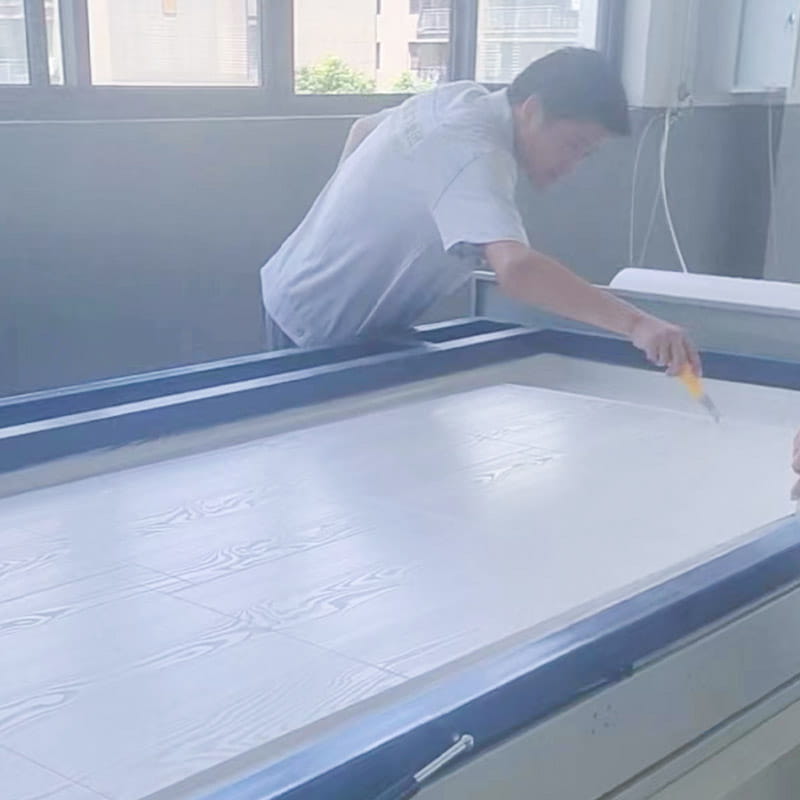

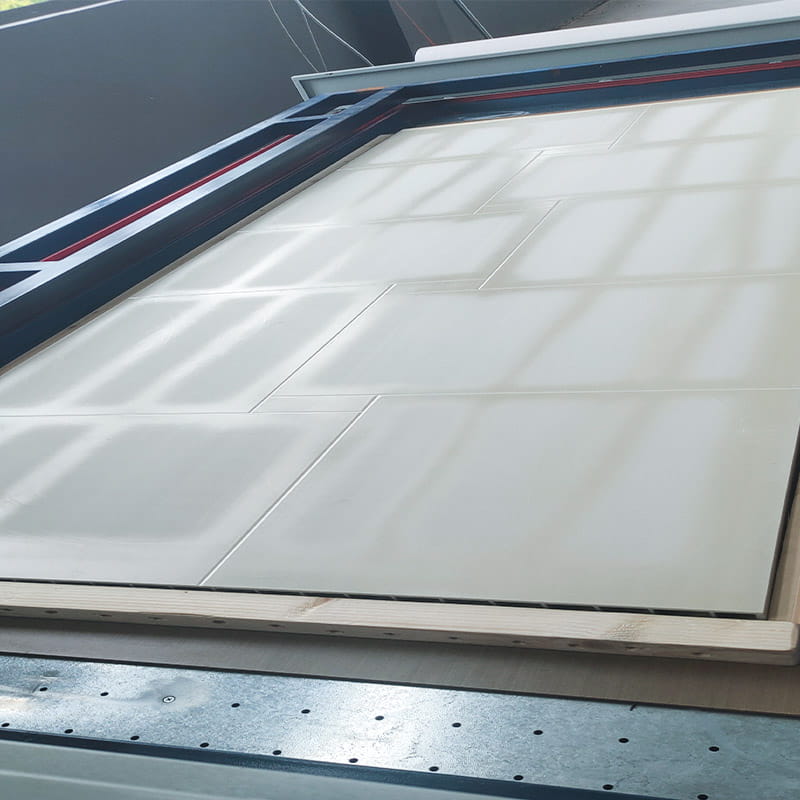

3. Thermoforming:
- Set the equipment preheating time between 5–20 seconds, depending on room temperature.
- Vacuum forming time should be 90–120 seconds.
- Ensure the adhesive reaches a temperature above 55°C to fully activate.
This information is based on our current knowledge and experience. Since the use of different materials and changing working conditions are beyond our control, we strongly recommend that customers conduct thorough experiments and consult our technical staff. We do not accept any liability related to this information. The company reserves the right to modify the above content as necessary.
Precautions
1. Substrate Preparation: Ensure the boards are sanded and dust-free for a smooth adhesive application.
2. Adhesive Application:
- Use a spray gun with air pressure above 7 kg and a nozzle diameter of 1.3–1.5 mm.
- Apply approximately 80 g/m² of adhesive to grooves, glass-inlay sections, and side edges. For the entire door panel surface, apply an average of 40 g/m².
- For wide-base grooves, aim the spray nozzle at the joint between the beveled edge and the base, spraying each side once to ensure uniform coverage.
3. Thermoforming:
- Set the equipment preheating time between 5–20 seconds, depending on room temperature.
- Vacuum forming time should be 90–120 seconds.
- Ensure the adhesive reaches a temperature above 55°C to fully activate.
This information is based on our current knowledge and experience. Since the use of different materials and changing working conditions are beyond our control, we strongly recommend that customers conduct thorough experiments and consult our technical staff. We do not accept any liability related to this information. The company reserves the right to modify the above content as necessary.
